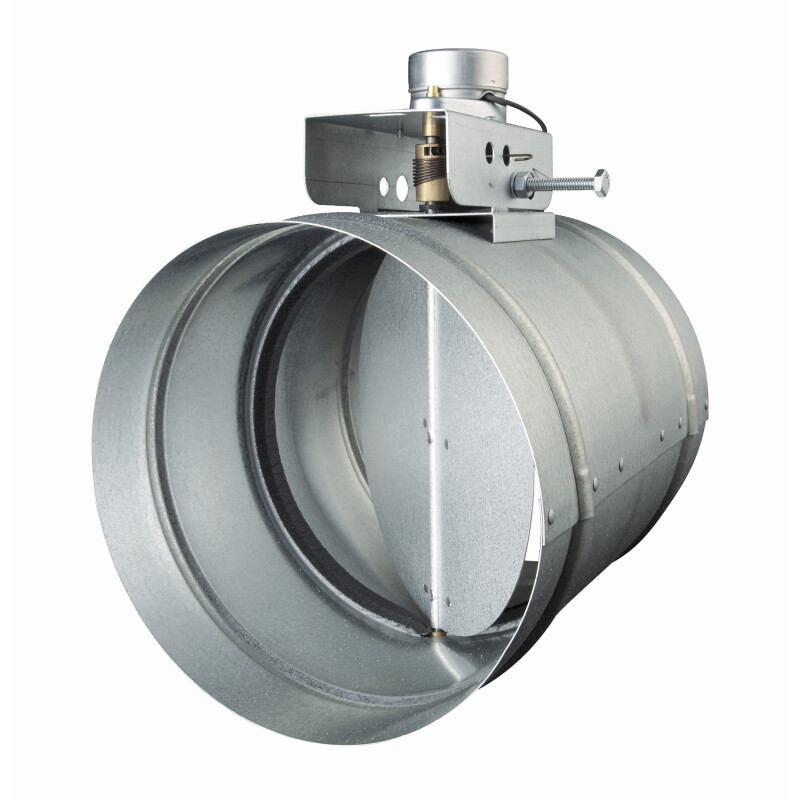

6-Inch Universal Automatic Make-Up Air Damper with Pressure Sensor Kit - MD6TU

BROAN interlocked make-up air dampers provide outside air when required to keep the air in the home fresher by allowing the range hood to operate at optimum levels

Universal design works with any BROAN range hood to balance indoor air pressure by providing interlocked make-up air without requiring a direct wire connection between the range hood and the damper. Instead a sensor is attached to the exhaust duct to detect if the range hood is operating

Slave dampers (MD6S, MD8S or MD10S) are interlocked to the main automatic or universal make-up air damper and open in unison for synchronized operation. They close, along with the main damper, as soon as the range hood is powered off. Slave dampers can be “ganged” together to provide a cost effective means to provide for higher volumes of make-up air

Can be used to meet International Residential Code (IRC)-based requirements for make-up air

Interlocked make-up air systems avoid wasted energy associated with barometric solutions and do not let unwanted air into the home during heating or cooling activities so air pressure is equalized for a well-balanced environment

Fresh air wall caps are required for use with Make-Up Air Dampers

See interactive Make-Up Air Specifier Tool for suggested model(s)

Compatible with Overture Connected IAQ System
